ASUS RT-AC3200 (Ver: R2.35) WiFi Test

(From previous post HERE)

WiFi testing based on iPerf3 with the following setup :

Note : The following test was based on my devices with specific settings (OS/software/version etc) and environment setup.  The results may vary depending on individual's device/hardware/software/setting/environment.  It's for my own reference only and should not be used for any benchmarking or comparison purposes.




The router's FW version and wireless setting as follows:

2015-09-17 19.10.40-2G.jpg2015-09-17 19.11.00-5G.jpg2015-09-17 19.11.24-5G2.jpg2015-09-18 00.03.05-5G2-Setting1.jpg




Acer TravelMate TM8371G

2015-09-17 15.54.08-2G.jpg2015-09-17 15.55.37.jpg2015-09-17 15.57.07-2G-R.jpg2015-09-17 15.58.38.jpg2015-09-17 16.01.58-5G.jpg2015-09-17 16.03.13.jpg2015-09-17 16.04.32-5G-R.jpg2015-09-17 16.05.41.jpg


Dell Latitude E5400

2015-09-17 16.18.56-2G.jpg2015-09-17 16.20.39.jpg2015-09-17 16.21.55-2G-R.jpg2015-09-17 16.22.53.jpg2015-09-17 16.25.34-5G.jpg2015-09-17 16.26.29.jpg2015-09-17 16.26.55.jpg2015-09-17 16.28.14-5G-R.jpg2015-09-17 16.29.03.jpg2015-09-17 16.29.28.jpg


Lenovo ThinkPad T440

2015-09-17 16.43.40-2G.jpg2015-09-17 16.44.36.jpg2015-09-17 16.46.11-2G-R.jpg2015-09-17 16.48.41.jpg2015-09-17 16.51.41-5G.jpg2015-09-17 16.52.59.jpg2015-09-17 16.54.06-5G-R.jpg2015-09-17 16.55.02.jpg2015-09-17 17.07.54-5G2.jpg2015-09-17 17.09.36.jpg2015-09-17 17.12.10-5G2-R.jpg2015-09-17 17.13.44.jpg




I setup the 5G's 2nd band as "N/AC Mixed" mode hoping to get pure AC traffic and better performance.  But somehow it didn't perform well as per my expectation and seem to be worst than the "Auto" mode in 5G's 1st band undecided... So I disable the "AMPDU" and "Airtime Fairness" as follows:

continue testings ...

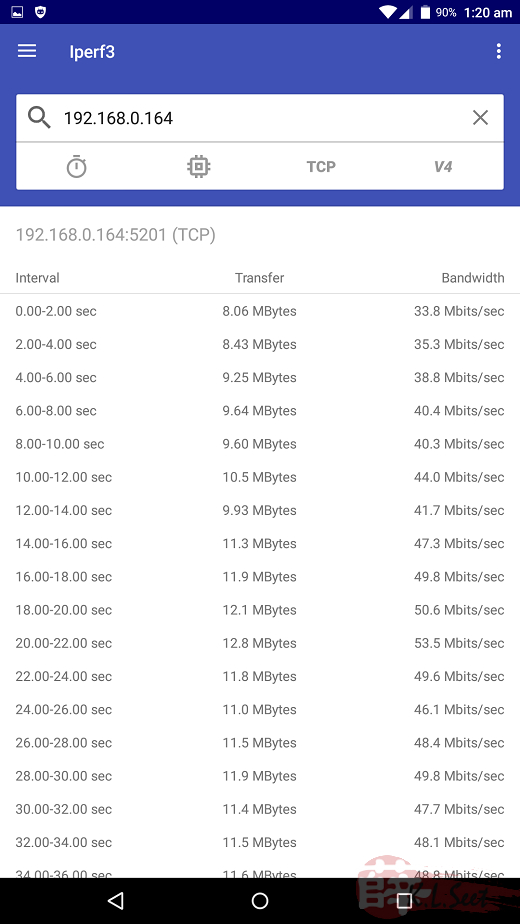

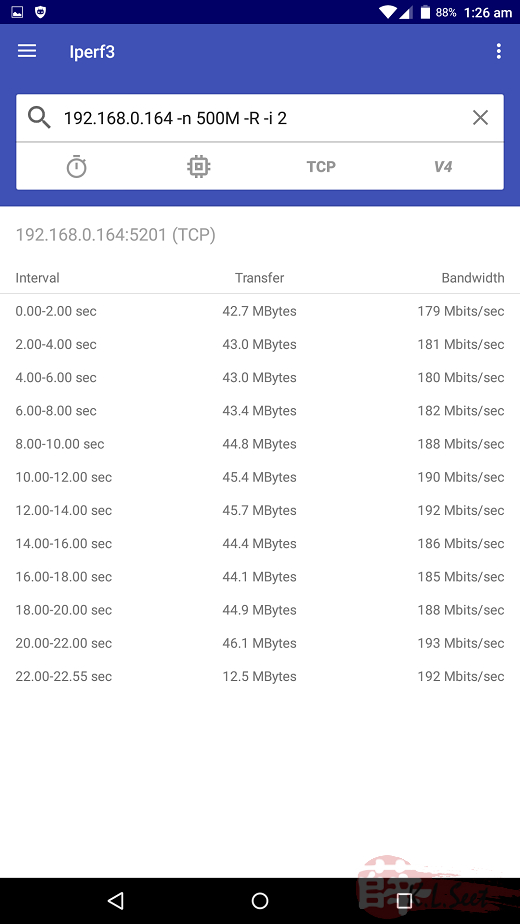

Sony Xperia Z Ultra C6833

Z-Ultra-2015-09-18-01-18-11.jpgZ-Ultra-2015-09-18-01-18-27.jpgZ-Ultra-2015-09-18-01-20-06.jpgZ-Ultra-2015-09-18-01-21-07.jpgZ-Ultra-2015-09-18-01-22-26.jpgZ-Ultra-2015-09-18-01-23-24.jpgZ-Ultra-2015-09-18-01-24-13.jpgZ-Ultra-2015-09-18-01-25-00.jpgZ-Ultra-2015-09-18-01-25-24.jpgZ-Ultra-2015-09-18-01-26-20.jpgZ-Ultra-2015-09-18-01-26-57.jpgZ-Ultra-2015-09-18-01-27-39.jpgZ-Ultra-2015-09-18-01-28-50.jpgZ-Ultra-2015-09-18-01-29-21.jpgZ-Ultra-2015-09-18-01-30-11.jpgZ-Ultra-2015-09-18-01-30-50.jpg


HTC Desire 820 Dual Sim

HTC820Dual-2015-09-18-02-12-16.jpgHTC820Dual-2015-09-18-02-12-37.jpgHTC820Dual-2015-09-18-02-13-55.jpgHTC820Dual-2015-09-18-02-14-36.jpgHTC820Dual-2015-09-18-02-17-35.jpgHTC820Dual-2015-09-18-02-18-15.jpgHTC820Dual-2015-09-18-02-19-03.jpgHTC820Dual-2015-09-18-02-20-24.jpgHTC820Dual-2015-09-18-02-20-57.jpgHTC820Dual-2015-09-18-02-21-49.jpgHTC820Dual-2015-09-18-02-22-20.jpgHTC820Dual-2015-09-18-02-23-03.jpgHTC820Dual-2015-09-18-02-24-01.jpgHTC820Dual-2015-09-18-02-24-31.jpgHTC820Dual-2015-09-18-02-25-23.jpgHTC820Dual-2015-09-18-02-25-55.jpg

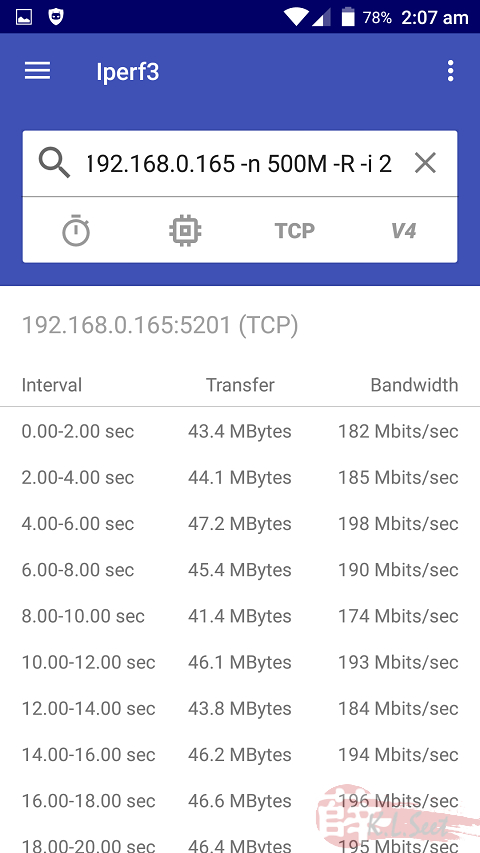

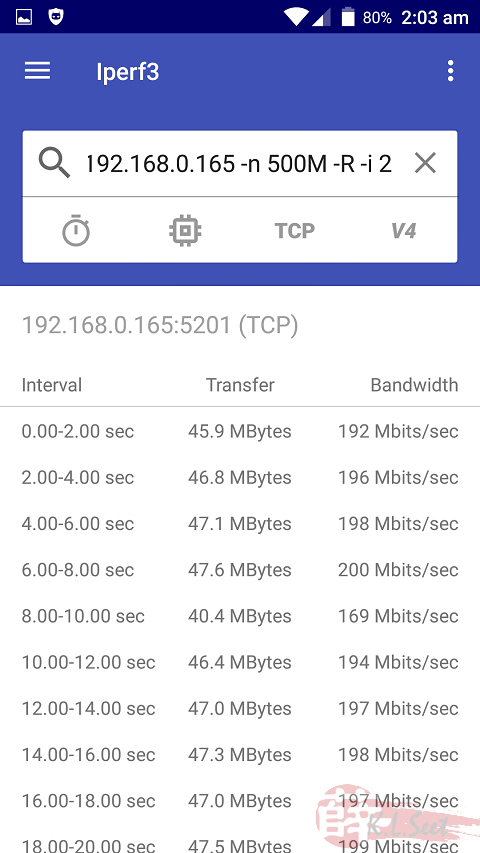

Samsung Galaxy S4 I9505

S4-I9505-2015-09-18-01-53-00.jpgS4-I9505-2015-09-18-01-53-20.jpgS4-I9505-2015-09-18-01-54-45.jpgS4-I9505-2015-09-18-01-56-08.jpgS4-I9505-2015-09-18-01-58-23.jpgS4-I9505-2015-09-18-01-59-10.jpgS4-I9505-2015-09-18-02-00-14.jpgS4-I9505-2015-09-18-02-01-27.jpgS4-I9505-2015-09-18-02-01-56.jpgS4-I9505-2015-09-18-02-02-44.jpgS4-I9505-2015-09-18-02-03-19.jpgS4-I9505-2015-09-18-02-04-17.jpgS4-I9505-2015-09-18-02-05-11.jpgS4-I9505-2015-09-18-02-05-42.jpgS4-I9505-2015-09-18-02-06-28.jpgS4-I9505-2015-09-18-02-07-05.jpg


...
