ASUS RT-AC5300 (HW Ver: R1031)  WiFi Test

(From previous post HERE)

WiFi testing based on iPerf3 with the following setup :

Note : The following test was based on my devices with specific settings (OS/software/version etc) and environment setup.  The wireless test results may vary depending on device/hardware/software/setting/environment.  This test is meant for my own reference only and should not be used for any benchmarking or comparison purposes.



The router's FW version and wireless setting as follows:

2016-04-06 19.39.49-AC5300-WiFi-setting.jpg2016-04-06 19.40.26.jpg2016-04-06 19.40.41.jpg2016-04-06 19.40.48.jpg2016-04-06 19.41.20.jpg2016-04-06 19.41.33.jpg2016-04-06 19.41.44.jpg

Test scenario & condition :

  • All laptops & PCs run on current latest same Windows 10 (ver. 1511) 64-bit
  • All laptops & PCs use current latest iPerf3.1.2
  • For mobile devices use current latest HE app
  • The ASUS router use current latest FW available from ASUS official website
  • 2 PCs connect through the router's LANport run iPerf3 as server, AntiVirus & Windows Firewall turn-off, no other apps running
  • During testing, the router is connected to UniFi internet (both IPv4 & IPv6) with IPTV streaming HD channel non-stop at LANport4
  • Laptops/PC and mobile devices run iPerf3 as client, run 2 tests to the 2 iPerf3 PC server separately
  • Only 1 wireless device is connected and run the iPerf3 test at one time

WiFi Test @2.4GHz on Laptops (ThinkPad T440 / Dell E5400) & DIY PC :

2016-04-06 17.01.51 THINKPAD-T440.jpg2016-04-06 17.03.25 THINKPAD-T440.jpg2016-04-06 17.18.54 E5400.jpg2016-04-06 17.21.10 E5400.jpg2016-04-06 17.33.15.jpg2016-04-06 17.34.22.jpg

WiFi Test @2.4GHz on Mobile devices (Samsung Galaxy S4 I9505 / HTC Desire 820 DualSim / Sony Xperia Z Ultra C6833 / iPhone6) :

a-SamsungS4I9505-20160406-194301.JPGa-SamsungS4I9505-20160406-194337.JPGa-SamsungS4I9505-20160406-194513.JPGa-SamsungS4I9505-20160406-194612.JPGb-HTC820Dual-2016-04-06-20-08-05.JPGb-HTC820Dual-2016-04-06-20-08-28.JPGb-HTC820Dual-2016-04-06-20-09-04.JPGb-HTC820Dual-2016-04-06-20-10-02.JPGc-SonyZUltraC6833-2016-04-06-20-17-09.JPGc-SonyZUltraC6833-2016-04-06-20-18-11.JPGc-SonyZUltraC6833-2016-04-06-20-20-05.JPGc-SonyZUltraC6833-2016-04-06-20-21-05.JPGd-iPhone6-IMG_1803.JPGd-iPhone6-IMG_1804.JPGd-iPhone6-IMG_1805.JPGd-iPhone6-IMG_1806.JPG


WiFi Test @5GHz (5G-1 & 5G-2) on Laptops (ThinkPad T440 / Dell E5400) & DIY PC :

2016-04-06 17.05.31 THINKPAD-T440-5G.jpg2016-04-06 17.06.32 THINKPAD-T440.jpg2016-04-06 17.13.07 THINKPAD-T440.jpg2016-04-06 17.14.08 THINKPAD-T440.jpg2016-04-06 17.23.00 E5400-5G.jpg2016-04-06 17.24.08 E5400.jpg2016-04-06 17.25.56 E5400.jpg2016-04-06 17.27.07 E5400.jpg2016-04-06 17.36.47-5G.jpg2016-04-06 17.38.03.jpg2016-04-06 17.39.58.jpg2016-04-06 17.41.09.jpg

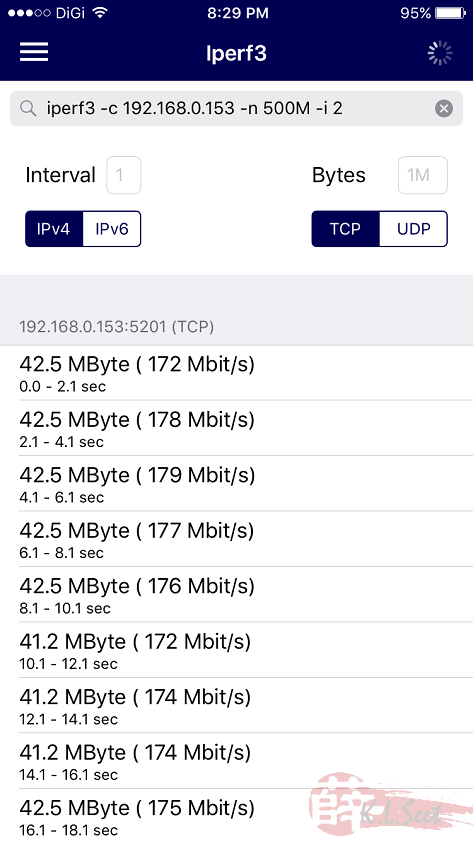

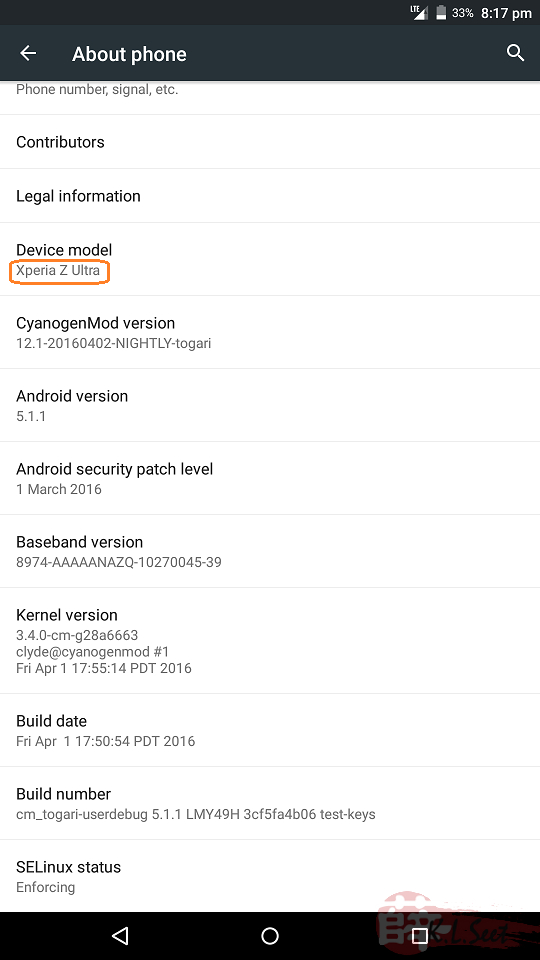

WiFi Test @5GHz on Mobile devices (Samsung Galaxy S4 I9505 / HTC Desire 820 DualSim / Sony Xperia Z Ultra C6833 / iPhone6) :

a-SamsungS4I9505-20160406-194301.JPGa-SamsungS4I9505-20160406-194718-5G.JPGa-SamsungS4I9505-20160406-194758.JPGa-SamsungS4I9505-20160406-194851.JPGb-HTC820Dual-2016-04-06-20-08-05.JPGb-HTC820Dual-2016-04-06-20-11-13-5G.JPGb-HTC820Dual-2016-04-06-20-11-49.JPGb-HTC820Dual-2016-04-06-20-12-41.JPGc-SonyZUltraC6833-2016-04-06-20-17-09.JPGc-SonyZUltraC6833-2016-04-06-20-21-55-5G.JPGc-SonyZUltraC6833-2016-04-06-20-22-49.JPGc-SonyZUltraC6833-2016-04-06-20-23-34.JPGd-iPhone6-IMG_1803.JPGd-iPhone6-IMG_1807-5G.JPGd-iPhone6-IMG_1808.JPGd-iPhone6-IMG_1809.JPG

.
