D-Link DIR-880L (Rev.A1) DualBand AC1900

MIMO 3x3:3, Advanced AC SmartBeam, DualBand AC1900 (2.4GHz@600Mbps + 5GHz@1300Mbps) laughing
Broadcom BCM4709C0 2Cores CPU @1GHz, 128/256MB Flash/RAM size
Gigabits ports, 1xUSB2, 1xUSB3, myDlink Mobile App, UniFi Custom FW (Vlan500+Vlan600 ready)

This AC1900 router already in market for a while, thanks D-Link Malaysia for the test unit, which I have been keeping it for quite some time too (due to my busy work) tongue-out

Product Photo

IMG_3563.JPGIMG_3565.JPGIMG_3567.JPGIMG_3569.JPGIMG_3570.JPGIMG_3581.JPGIMG_3582.JPGIMG_3584.JPGIMG_3585.JPGIMG_3586.JPG

Normal packaging, overall design outlook normal like any other tranditional router, plastic material with some glossy feel on top area, doesn't feel heavy though, antenna flat shape design rather unusual not too bad looking, lots of ventilation holes especially at the back which can easily see the board smile

Information & reference :


UniFi Setup :

My setup & config as follows :

2016-09-08 13.20.45-880LA1.jpg2016-09-08 13.20.56.jpg2016-09-08 13.21.38-UniFi.jpg2016-09-08 13.21.52.jpg2016-09-08 13.22.40.jpg2016-09-08 13.26.03-WiFi.jpg2016-09-08 13.26.18.jpg

D-Link's new firmware design outlook is clean and easy to setup, just choose UniFi-PPPoE and setup accordingly, internet (Vlan500), IPTV (Vlan600) and IPv6 works out of the box without any issue.

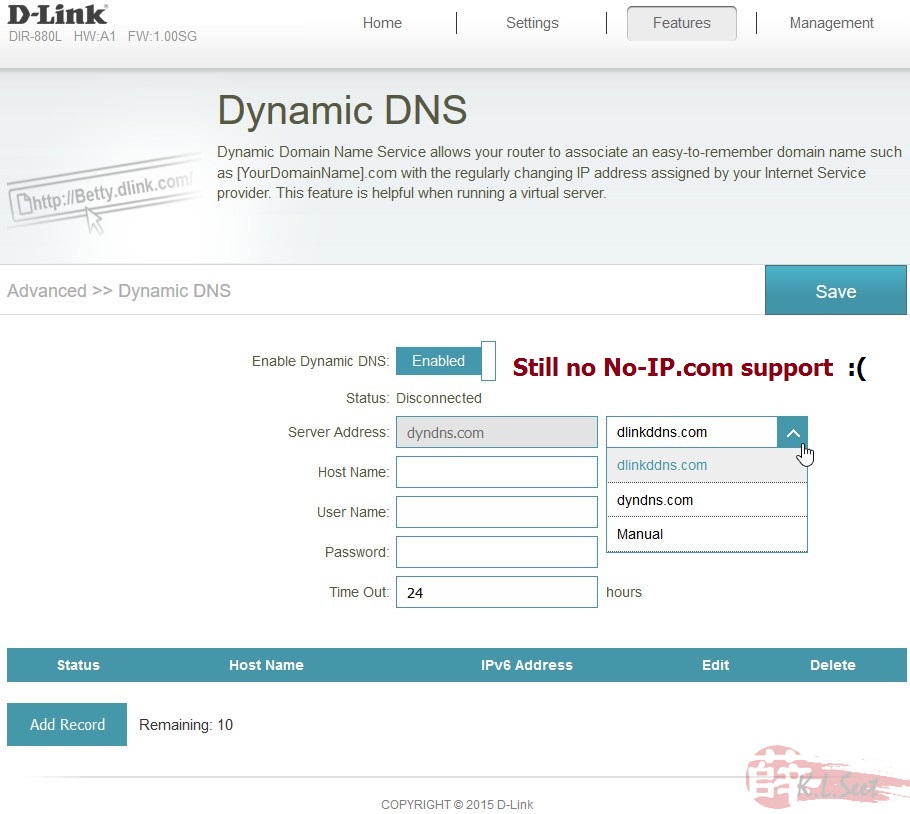

However, the new firmware still need to improve further on some area like the QoS feature and the DDNS support, still no support for No-IP.com frown


Wireless Performance Test

WiFi performance testings on PC, laptop and mobile devices, both 2.4GHz & 5GHz


Wireless Performance Test with DWA-192

.
