D-Link DIR-816L  (Ver.B1) - WiFi Testing

(Read first posting HERE)

I seldom play RealTek SoC toys, more so on custom firmware with 3 digits VLANs, let's see how this toys WiFi performance on some of my laptops & mobile gadgets Cool

The following wifi testing is based on current latest custom firmware "DIR816L_FW200SGb01" (D-Link R&D team is in Singapore)
Initial wireless connection shown as follows, bear in mind this is a non-gigabit budget entry leve DualBand AC750 router ...


All devices were connected simultaneously around 10~15ft distance to the router, wifi speed test was done one after another in order to see the actual throughput performance on each device.


As show on the above, overall 2.4GHz connection rate seem to be average to low (using N-only), whereas the 5GHz (using mix) seem to have better connection rate.



WiFi 2.4GHz - Laptops

2014-10-18 22.39.37-U32U.jpg2014-10-18 22.55.10.jpg2014-10-18 23.56.41-F80L.jpg2014-10-19 00.11.50.jpg2014-10-19 00.38.07-R830.jpg2014-10-19 01.18.45.jpg2014-10-19 01.38.45-E5400-2G.jpg2014-10-19 01.56.45.jpg2014-10-19 10.41.13-TM8371-2G.jpg2014-10-19 11.00.50.jpg2014-10-19 12.15.14-T440-2G.jpg2014-10-19 12.27.41.jpg2014-10-19 12.37.03.jpg

.

WiFi 5GHz - Laptops

2014-10-19 02.20.57-E5400-5G.jpg2014-10-19 02.35.55.jpg2014-10-19 11.22.01-TM8371-5G.jpg2014-10-19 11.34.26.jpg2014-10-19 12.45.56-T440-5G.jpg2014-10-19 12.56.38.jpg2014-10-19 13.02.55.jpg

.

WiFi 2.4GHz - Mobile Devices

1-ZP980-2014-10-19-13-36-50.jpg1-ZP980-2014-10-19-13-37-59.jpg1-ZP980-2014-10-19-13-40-12.jpg1-ZP980-2014-10-19-13-40-51.jpg2-OT6040D-2014-10-19-13-46-57.jpg2-OT6040D-2014-10-19-13-47-53.jpg2-OT6040D-2014-10-19-13-49-24.jpg2-OT6040D-2014-10-19-13-50-03.jpg3-ZF5T00F-2014-10-19-13-58-36.jpg3-ZF5T00F-2014-10-19-13-59-23.jpg3-ZF5T00F-2014-10-19-14-00-44.jpg3-ZF5T00F-2014-10-19-14-02-13.jpg4-FNF-mini4-2014-10-19-14-16-39.jpg4-FNF-mini4-2014-10-19-14-19-13.jpg4-FNF-mini4-2014-10-19-14-20-37.jpg4-FNF-mini4-2014-10-19-14-22-03.jpg5-TF300TG-2014-10-19-14-24-38.jpg5-TF300TG-2014-10-19-14-25-41.jpg5-TF300TG-2014-10-19-14-27-04.jpg5-TF300TG-2014-10-19-14-28-29.jpg

.

WiFi 5GHz - Mobile Devices

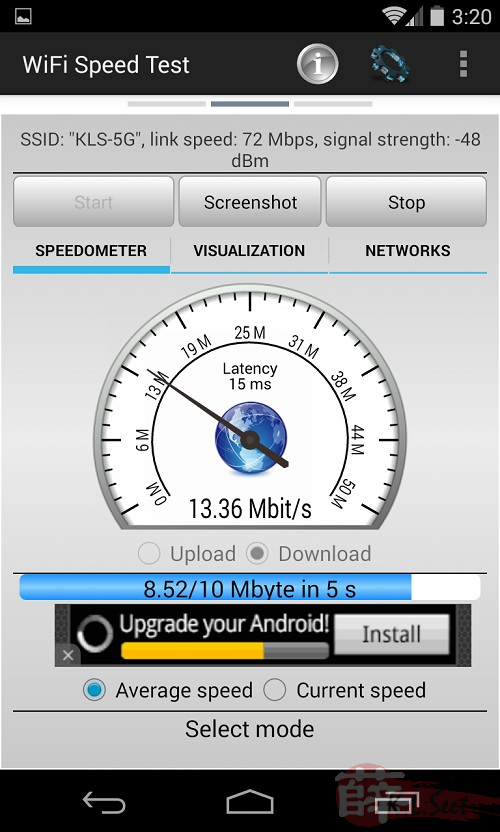

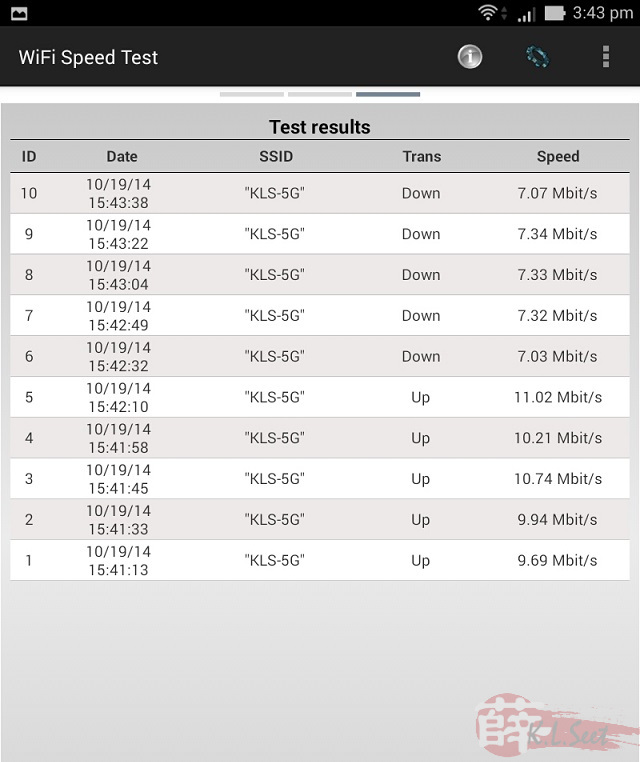

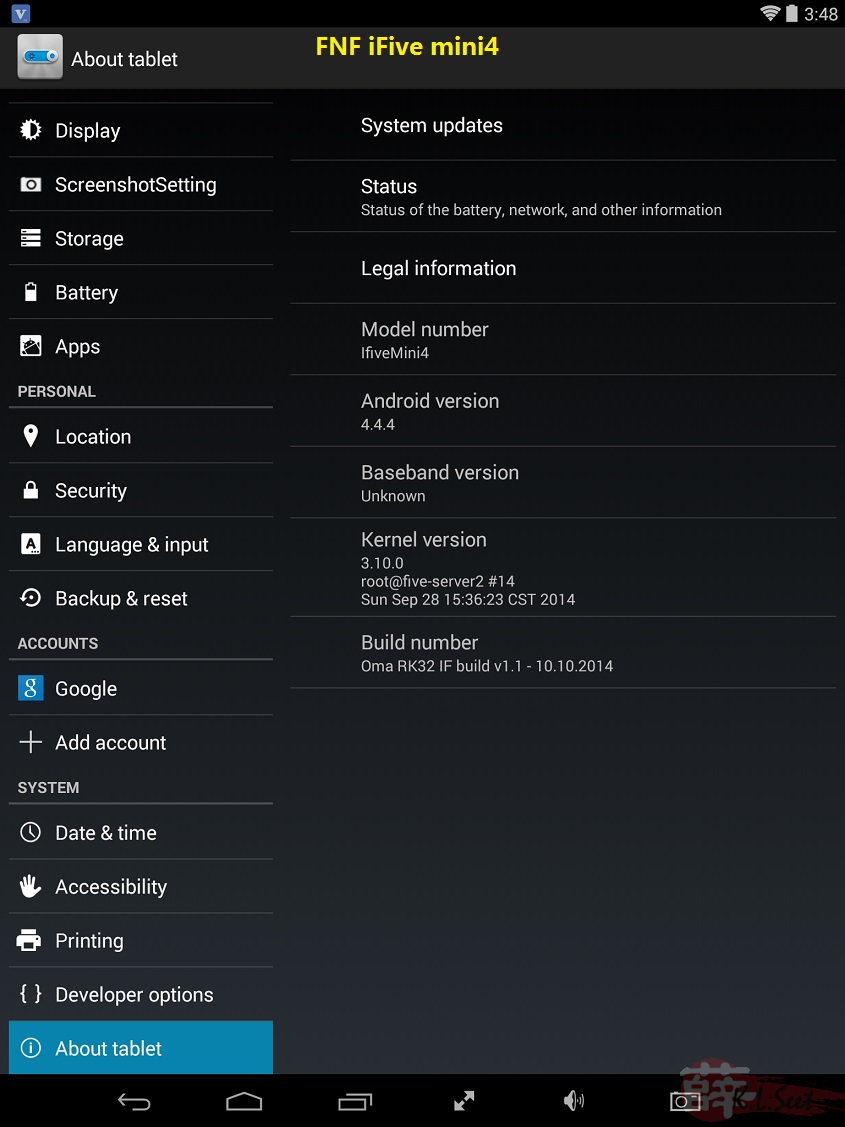

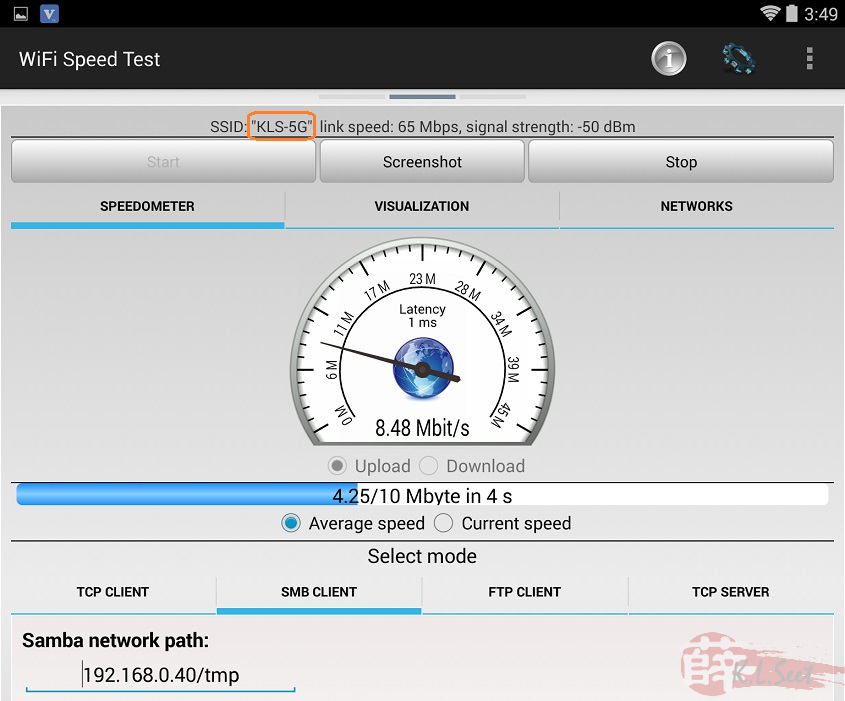

1-Nexus4-2014-10-19-15-17-38.jpg1-Nexus4-2014-10-19-15-18-35.jpg1-Nexus4-2014-10-19-15-20-07.jpg1-Nexus4-2014-10-19-15-20-56.jpg2-S4--I9505-2014-10-19-15-25-57.jpg2-S4--I9505-2014-10-19-15-26-20.jpg2-S4--I9505-2014-10-19-15-27-51.jpg2-S4--I9505-2014-10-19-15-29-15.jpg3-N3--N9005-2014-10-19-15-31-45.jpg3-N3--N9005-2014-10-19-15-32-44.jpg3-N3--N9005-2014-10-19-15-34-20.jpg3-N3--N9005-2014-10-19-15-35-20.jpg4-ME372CG-K00E-2014-10-19-15-40-07.jpg4-ME372CG-K00E-2014-10-19-15-41-54.jpg4-ME372CG-K00E-2014-10-19-15-42-25.jpg4-ME372CG-K00E-2014-10-19-15-43-45.jpg5-FNF-mini4-2014-10-19-15-48-41.jpg5-FNF-mini4-2014-10-19-15-49-18.jpg5-FNF-mini4-2014-10-19-15-50-36.jpg5-FNF-mini4-2014-10-19-15-51-56.jpg

.

Result summary

Device

WiFi Adapter

OSRAMHDD

2.4GHz
Write
(MB/s)

2.4GHz
Read
(MB/s)

5GHz
Write
(MB/s)

5GHz
Read
(MB/s)


ASUS U32UAtheros AR9002WB-1NGWin8.1Pro 64Bit6GBSATA HGST
HTS725050A7E630		3.185.33
     4.624.54

ASUS F80LAtheros AR928XWin7Pro 32Bit3GBSATA
ST9250827AS		3.81 8.32
      3.50 6.74

Toshiba R830Atheros AR9002WB-1NGWin7Ent 64Bit16GBSSD
Plexor 256M5Pro		3.474.48
      3.47 4.30

Dell E5400Intel 5100 AGNWin7Pro 32Bit2GBSATA
ST9250315AS		4.568.56 9.66 11.49
     3.808.36 10.32 11.60

Acer TM8371GIntel 5100 AGNWin8.1Pro 64Bit8GBSATA WDC
WD5000BPKX-00HPJT0		5.7011.129.60 11.65
     5.8010.699.91 11.65

ThinkPad T440Intel AC7260Win7Ent 64Bit8GBSATA WDC
WD10JPVX-08JC3T5		6.6010.28 11.25 11.64
     5.8310.49 11.28 11.66
     6.079.7911.27 11.67


.
